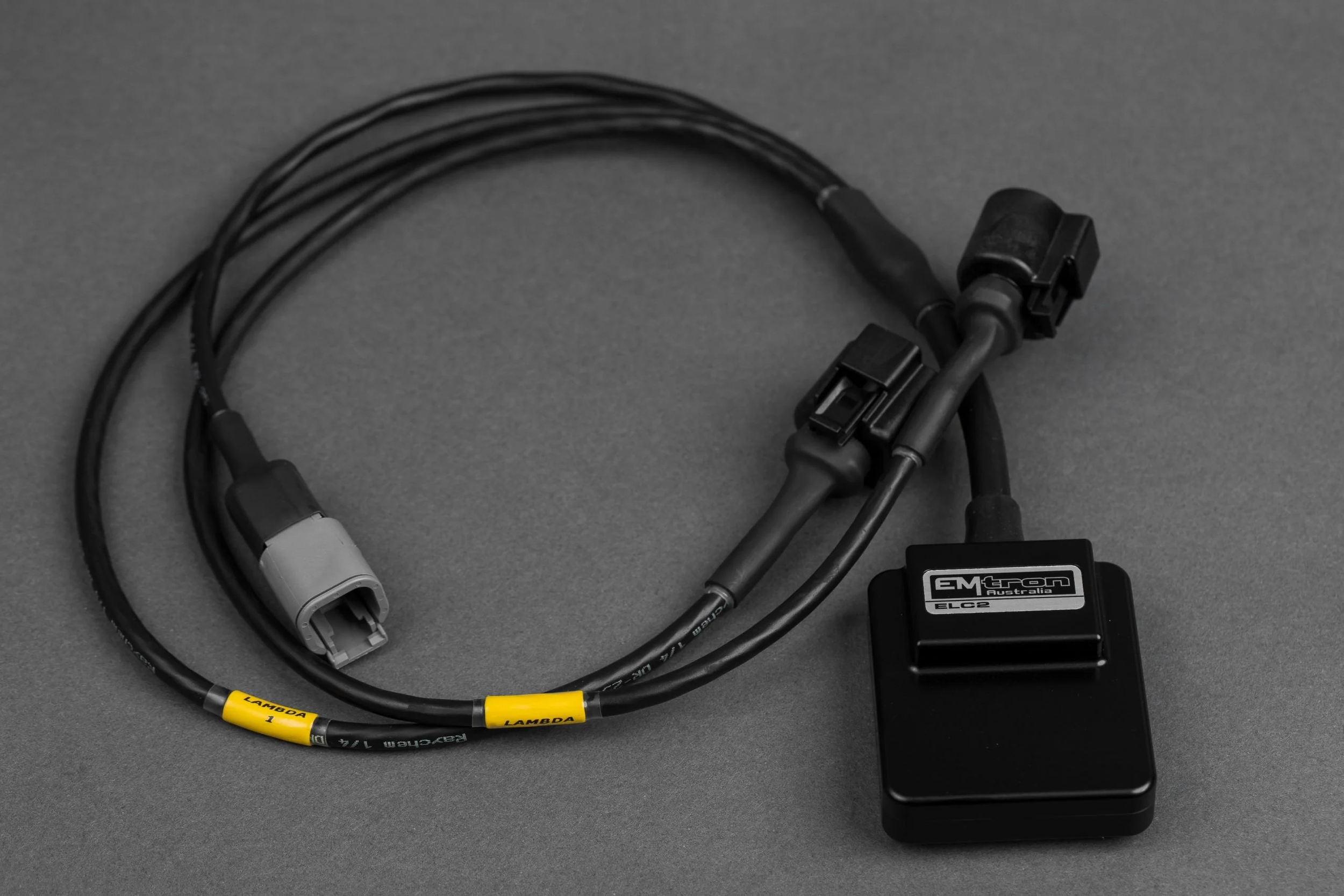

Emtron Canbus based Lambda dual channel controller.
Does not include wideband O2 sensor. Click HERE for the Bosch LSU 4.9 O2 sensor used with the Emtron ELC.
ELC Overview::
6061 Aluminium CNC Billet Enclosure
DTM Connector System for power and CAN bus
64MHz 16Bit Automotive Processor
EMAP Pump Current Compensation
Programmable from Emtune Tuning Software via CAN bus
Plugs directly into Bosch 4.9LSU sensor
Signal Sample Rate 100hz
Signal Resolution 0.001 La
